11 Panel Leaflet
Expanded Content Labels (ECL) Single Ribbon Leaflets are a multi-panel solution best described as a label with one single sheet of printed literature ribbon to fit around the product. The leaflet expanded content label is encompassed into a self-adhesive, fully laminated label with an adhesive tab, and is constructed to ribbon around the product. It is suitable for a wide variety of packaging types and is ideal for directions for use, informative labeling, and multilingual information. Leaflets can be customized based on your product’s specific needs including panels, constructions, materials, tabs, imprinting method, and color combinations, delivering the most effective solution for your product requirements.
Overview of ECL Single Ribbon Leaflets
The Multi-Wrap Label is printed on the front and back and is brilliantly constructed to be wound several times around a cylindrical item. This label is suitable for small containers and ampoules. If more text space is required, the Multi-Wrap solution can also be supplied with a leaflet / booklet attached. It has a resealable function that allows the label to be opened and closed again and again.Â
- Endless range of shapes and sizes
- Designed for small containers, ampoules, and tight circumferences
- User-friendly open tabs
- Resealable throughout the products life
- Maintaining brand identity
- Cost-effective alternative to booklet and leaflet labels
- Automatic label application using standard equipment
Expanded Content Label Options
Booklets
- Stitched booklets: 4-184 pages
- Glued bound booklets: 4-48 pages
Leaflets
- Single Panel max: 16 panels
- Multiple Ribbon glue bound max: 32 panels
- Removable ECL leaflets allow the booklet to detach information without damaging the rest of the package.
- Resealable ECL Leaflets allow the label to be opened and closed for repeated use. The leaflet label also has a resealable closure available in many different versions. It can be covered with a dirt repellent and attractive looking lamination.
Tab opening direction options: left or right
Tab opening direction options: left or right
Tab opening direction options: left or right
Tab opening direction options: left or right
Full Base Label -Expanded Content Labels
Full Base Labels are designed for use on flat surfaces including cartons, kits and cards. The base spans the entire length of the ECL from edge to edge. Bases can be constructed from a large array materials and is offered Clear, White, Black, Opaque or metalized substrates.
Full Base Section Shown in Blue
Front Side of the Label
Partial Base Label -Expanded Content Labels
Partial Base Labels are designed for use with cylindrical clinical containers such as bottles, vials, canisters and syringes. Partial Bases are a small section of base that adheres to the container and allows the booklet to wrap around the curved surface, generally the tab section is used to adhere to the other side of the container, securing the booklet. Bases can be constructed from a large array materials and is offered Clear, White, Black, Opaque or metalized substrates.
Small Partial Base Section Shown in Blue
Large Partial Base shown in Blue
Front Side of the Label
Segmented Label Base Construction -Expanded Content Labels
Segmented label base constructions are used when it is necessary to wrap a booklet label around one or more edges of a box or carton. As illustrated below it uses “2 base section” so the label is able to bend and adhere correctly around corners or tight radiuses. It is important to have all the packaging component dimensions when designing this type of label.
2-Base Section Shown in Blue
Front Side of the Label
- Full Graphics OTC with ECL
- Multi-Wrap
- Encapsulated Tear off leaflet
- Back label with leaflet
- Back label with stitched booklet
- Back label with glue bound booklet
- Tear off leaflet with zipper opening
- Clinical BookletsÂ
- Thermal transfer
- Laser
- Hot stamp
- Data lase
Patterned Lamination for Imprinting
Patterned Lamination leaves an unlamented area for Imprinting.
Label Example
Fully Laminated - ECL
Full Lamination shown in pink
Label Example

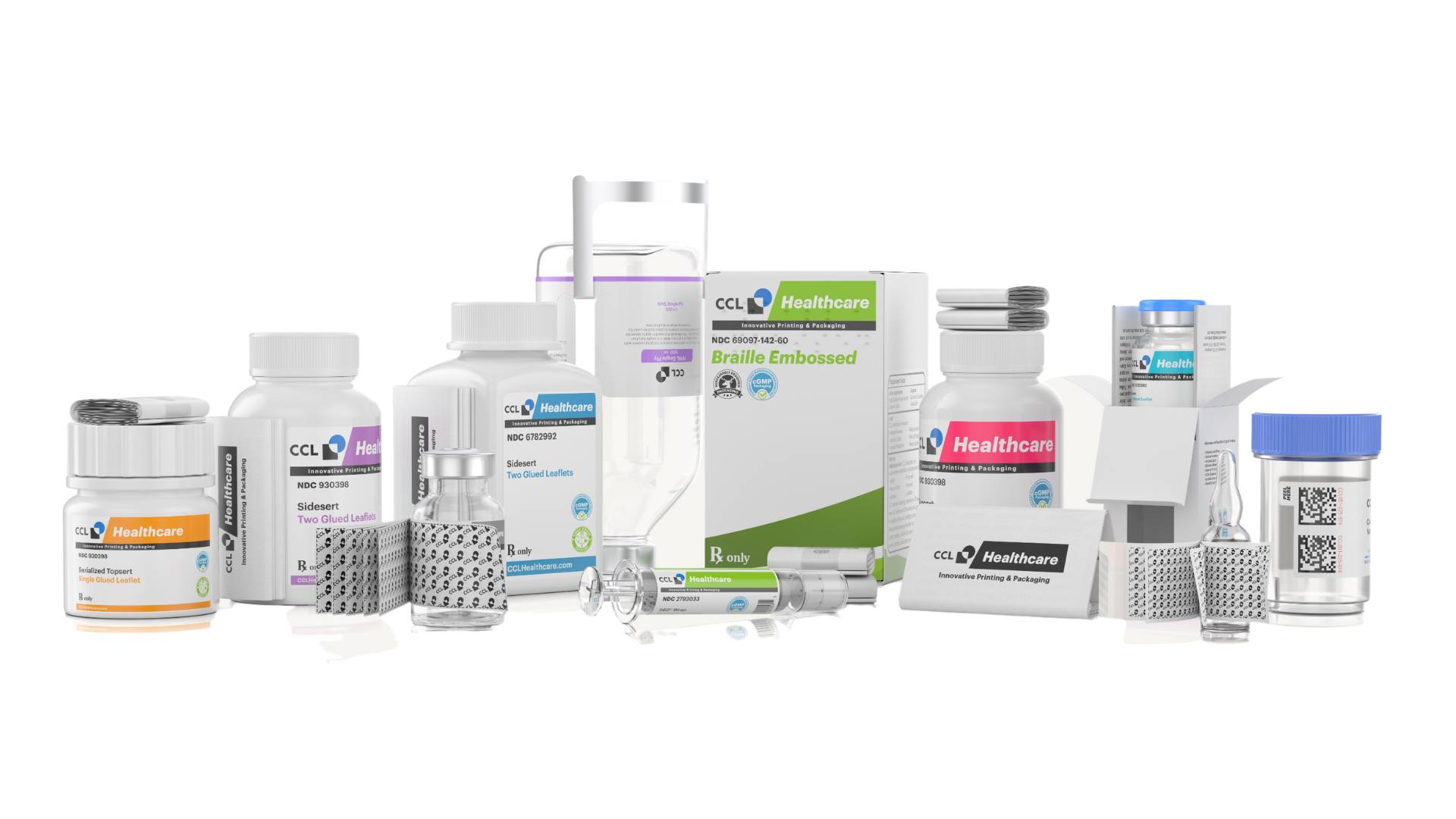

ECL’s can be custom made for many types of packaging. The flexibility of ECL’s designs even allow the most difficult containers or primary package to accommodate an ECL.
- Round Bottle
- Square Bottle
- Vial
- Syringe
- Ampule
- Carton
- Auto Injector
- and More
